Alpha2obj v3.1



This location is for Registered Users Only.
Perhaps you need to login or register.
Contributor: Harvey Goodall
Converts the alpha channel to an obj. Useful for creating 3d smoke or text. Only creates geometry where alpha>0. This makes it smaller/faster to handle, and easier to use in 3d space. Enables you to mirror the back to make a solid object
Requirements:
11.0, 10.5, 10.0 or later
Linux, Mac, Windows
10 Jul 2017
669

V3.1

fixes a few bugs

places obj in the equivalent geometry as a card (centred at the origin)

Ability to regenerate obj and adjust the depth scale. (Only works if the generated readgeo node is still connected to the gizmo).



V3

Normalises output

Ability to lower the sample size for increased speed and reduced geometrysize. Useful for creating proxy geometry.

(Defaults to half res - change this to 1 for optimum results)

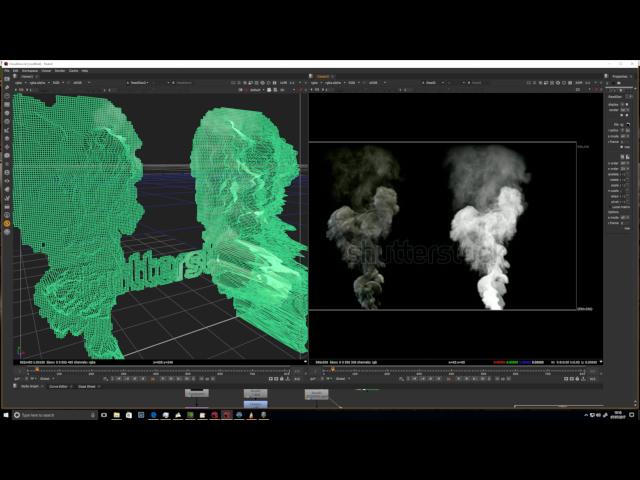

3dgeo 1





V2

Improved version, with the option to mirror the back of the object.
Also now has proper UV mapping.

Better file handling

Perfect for clouds and smoke.

#####################################



This is created by request.



It converts an inputted alpha channel to an obj file.

Can handle animated alphas as well.



Where alpha >0 the obj will exist.



You might want to scale the outputted obj to create the right amount of depth.



(Not the most efficient script, but it is V1 after all!)
