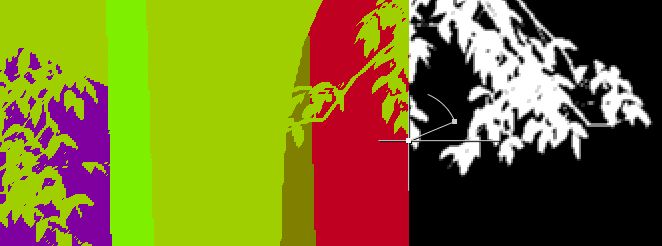

Generate antialiased multi-masks from double res IDpass
IDselect_hub
Updated: 9 October 2010
Author: philhub
Compatible Nuke versions: 6.0 or later
Compatibility: Windows
- IDpass must be at least twice larger than master format to generate proper antialiasing
- display mask in RGB can causes color selection to behave wildly.
So the right procedure is to first sample the chosen color and then tick the \"add color\" checkbox.
- if some colors can't be selected try to rise the tolerance value and if more than 1 color is selected try lower it.

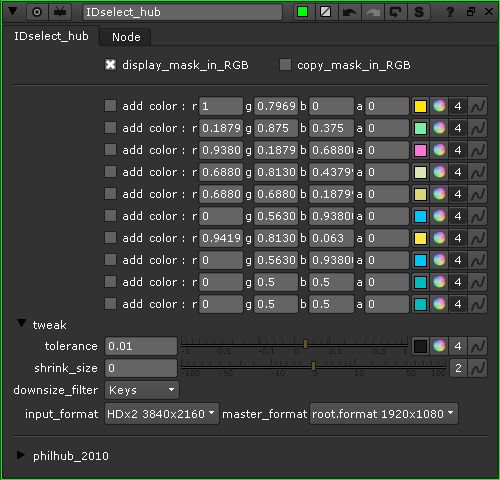

- As the downscaling method is far less accurate than using coverage pass, i put in tweak section parameters to adjust it to your needs.
You can contract/expand it with shrink_size and choose which resize algorithm to use in order ton control the crispness.
