ImagePlane

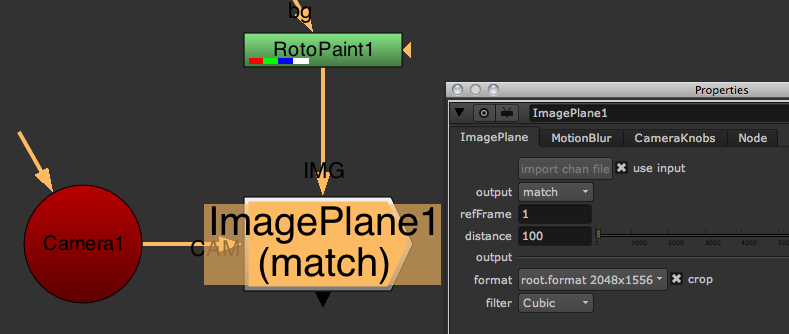

The ImagePlane gizmo can be used like the Tracker node for matching or stabilising, except it will use a match move camera to provide the required animation:


Technically, the imagePlane gizmo turns the incoming image into an image plane of a snapshot of the used camera at the given reference frame.

import chan file	use to import a chan file for using an internal camera (instead of connecting one). When this is used the imported values will live in the CameraKnobs tab.
use input	if checked, the connected camera will be used, otherwise the values from the CameraKnobs tab will be used (imported chan file)
output	chose to match or stabilise the incoming image based on the camera
refFrame	frame to keep unmodified
distance	distance of the internal 3D card to the camera. Use to control the amount of parallax applied to the image
output	parameters to control the output format
