ITransform

mask based warper with transform controls

Updated: 26 January 2017

Author: frank

Compatible Nuke versions: 6.0 or later

Compatibility: Linux, Mac, Windows

v1.5: added 'root warp knob to dial back the overall warp effect. added knob to define the control channel.

To get the root format's centre by default add the following callback to your init.py:

# auto center for ITransform
def setCenter():
    n = nuke.thisNode()
    n['center'].setValue((n.width() * 0.5, n.height() * 0.5))

nuke.addOnUserCreate(setCenter, nodeClass='ITransform')


v1.4: fixed non-uniform scale


v1.3: re-implemented the skew knobs which got lost when the new skew paremters where introduces in Nuke


v1.2: updated to deal with non-square pixel aspect




v1.1: added option to not crop the result and fixed expressions to work with stereo projects




ITransform uses the IDisplace node under the hood to warp an image based on a control mask.
It's quite handy for controlled warping as it let's you do anything a normal Transform node does, so it's possible to use tracking data to for animated warps etc.

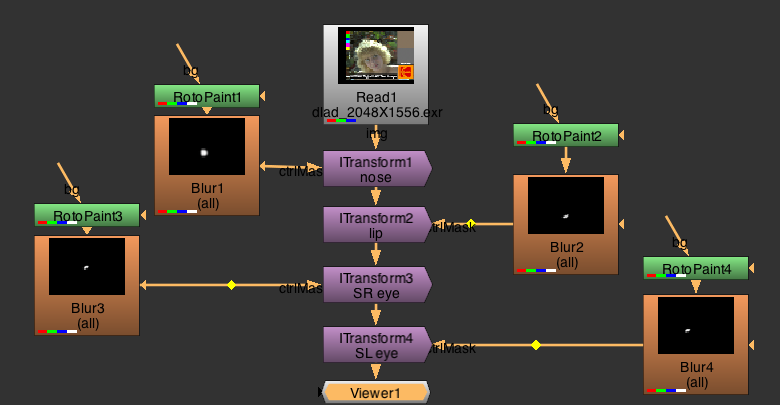

ITransform_01

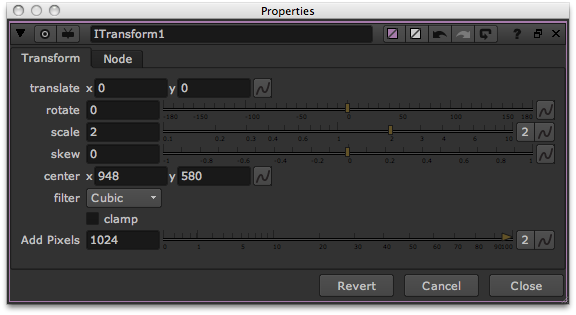

The controls are just like the regular Transform node (though due to a bug in the current Nuke version the center knob may not set itself correctly upon initial node creation)ITransform_02

Sorry Marcie, didn't have anything else handy.
ITransform_03
