Contributor: Andrea Geremia
Classic FrameHold node with more features
Requirements:
12.2, 12.1, 12.0, 11.3, 11.2, 11.1, 11.0, 10.5, 10 or later
Linux, Mac, Windows
14 Feb 2021
315

FRAMEHOLD SPECIAL


v2.3:

+ added example

+ improved graphic


v2.2:

+ fixed typing error


v2.1:

+ updated text and explanations

+ added knobChanged


v2: special Thanks to Fabian Holtz for his advice!

+ updated tool, now it's more lightweight


Compared to the classic FrameHold node, this one has something SPECIAL: Pick a frame and use it for the frame range that you prefer!

The gizmo doesn't use keyframe, but just FrameRange and AppendClip.



Here a small explanation:

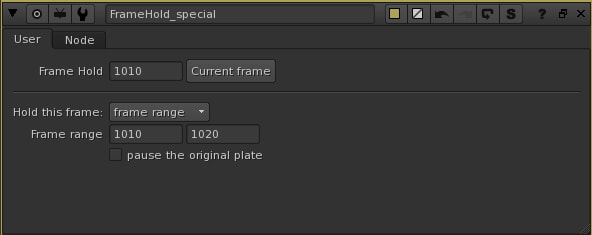

When you connect the node to the footage, you can choose the frame to hold.


With checkbox 'pause the original plate' you can stop the original footage and then take it back after the FrameHold.

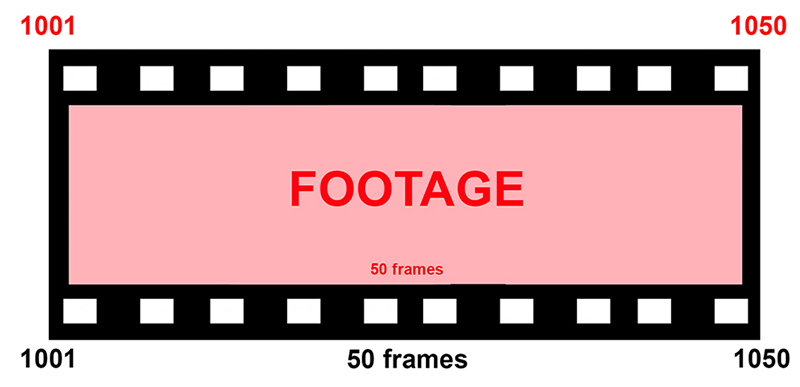

For example, frame range of your Footage is going from 1001 to 1050.

I would like to lock the frame 1010 in this frame range: 1010-1020, like in the previous images

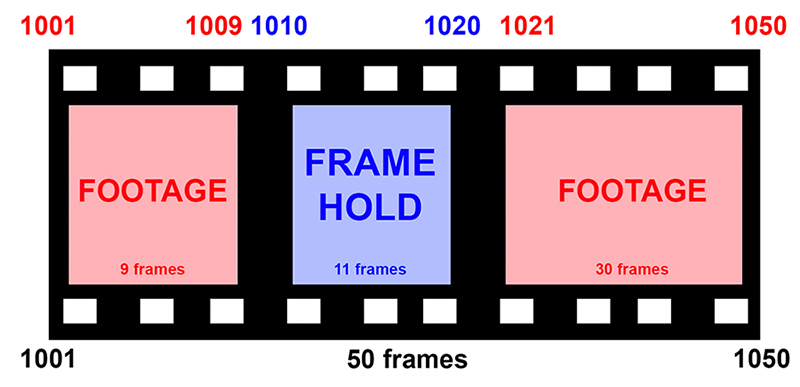

If your checkbox is unchecked, the final frame range will be the same: 1001-1050. Basically the footage won't be stopped, but the Frame Hold will replace the footage in the frame range specified, so 1010-1020.

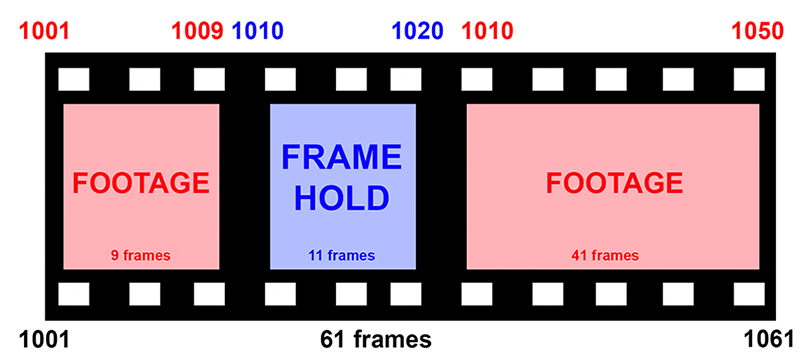

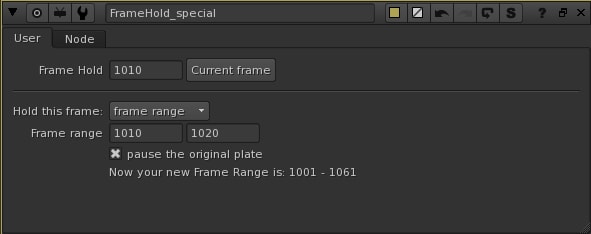

If your checkbox is checked, the final frame range will be: 1001-1061. That's why the footage will be stopped after frame 1009 (I would like to lock the frame in the frame range: 1010-1020, so for 11 frames). After frame 1020 my footage will restart from frame 1010, when I stopped it before.

At the end my new frame range is 1000-1061.


Please login in order to download these files.

Comments


+1 # Qwa7 Qwa7 2019-03-25 09:05
Thank!


+1 # Peter Schwarz 2019-04-24 07:23
Thanks! really useful!
btw.: you have best gizmo documentation here :)
btw2.: "Python and TCL: Tips and Tricks for Nuke" on your homepage is amazing! Thank You :)


# Andrea Geremia 2019-05-17 11:08
Thank YOU Peter :)
A real pleasure to share this tool! It's the best part of the community :lol:
